In the world of commercial architecture and facility management, few components are as vital—yet as frequently overlooked—as the commercial door closer. Often regarded as a simple mechanical box, the door closer is, in reality, a sophisticated hydraulic device responsible for maintaining the delicate balance between security, fire safety, and energy efficiency.
The Silent Sentinels of Your Building
Whether you are managing a high-traffic retail storefront, a sterile healthcare environment, or a corporate office complex, the door closer ensures that fire-rated doors remain latched, HVAC-controlled air stays inside, and your building remains accessible to all. A failing or improperly specified closer isn’t just a nuisance that slams doors; it is a significant liability that can lead to ADA (Americans with Disabilities Act) violations, compromised fire barriers, and increased maintenance costs.
In this comprehensive guide, we will break down the complex engineering behind door control systems, helping you navigate the technical specifications required to protect your infrastructure and its occupants.
1. Understanding Door Closer Grades: The ANSI/BHMA Standard
When selecting hardware for a commercial project, the first technical metric you must evaluate is the Grade. In the United States and many international markets, door closers are certified under ANSI/BHMA A156.4, which classifies hardware based on its performance, durability, and “cycle life”.
Understanding these grades is the difference between a device that lasts 15 years and one that fails in 6 months.
Grade 1: Heavy-Duty / High-Traffic

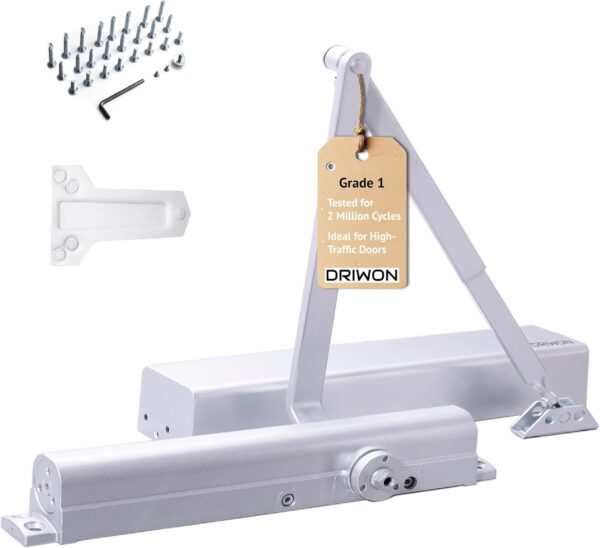

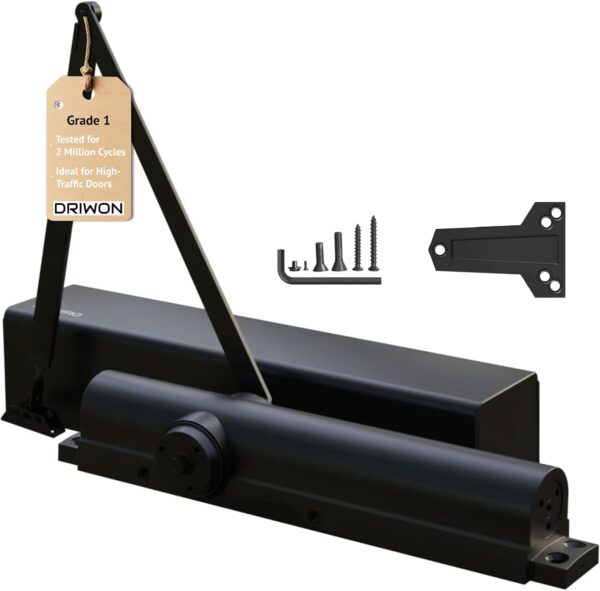

- The Benchmark: To achieve Grade 1 certification, a door closer must successfully complete a minimum of 2,000,000 cycles in a laboratory setting.
- Best For: Schools, hospitals, shopping malls, and main entry points of public buildings.

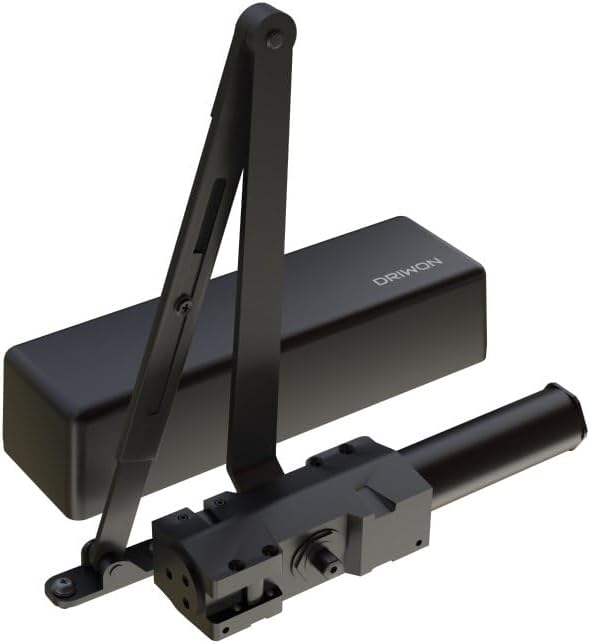

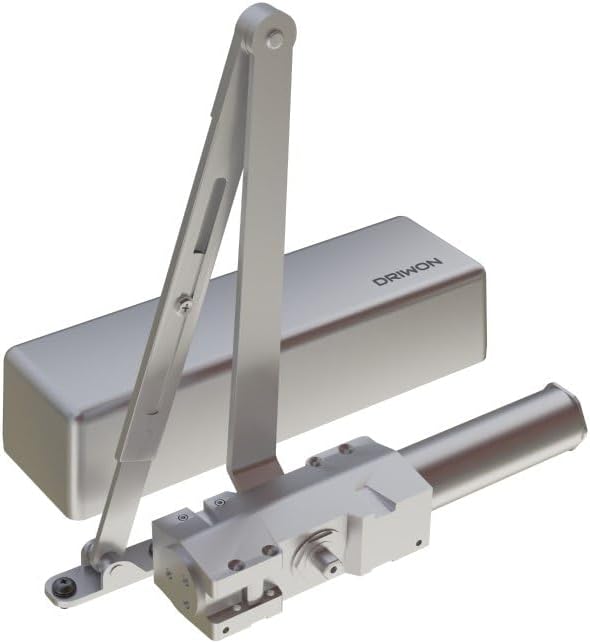

- Technical Edge: These closers are engineered with high-tensile strength springs and robust cast-iron or aluminum alloy bodies to withstand the “abuse” of high-volume usage and potential vandalism. If your door sees more than 50 openings per day, Grade 1 is the industry standard.
Grade 2: Medium-Duty / Commercial
- The Benchmark: Grade 2 closers are tested to 1,000,000 cycles.
- Best For: Interior office doors, small retail shops, and apartment complex unit doors.
- Technical Edge: They offer a balance between cost-efficiency and durability. They are suitable for environments where the traffic is consistent but not constant. However, installing a Grade 2 closer on a heavy exterior door is a common mistake that leads to premature hydraulic fluid leaks.
Grade 3: Standard-Duty / Light Commercial
- The Benchmark: These units are tested to 500,000 cycles.
- Best For: Low-traffic interior areas, storage closets, or residential applications.
- Technical Edge: While compliant with basic standards, Grade 3 closers lack the sophisticated valve adjustments (like Backcheck or Delayed Action) often found in higher grades. They are generally not recommended for primary commercial egress paths.
Expert Tip: While Grade 1 hardware has a higher upfront cost, its Total Cost of Ownership (TCO) is significantly lower in commercial environments due to reduced replacement frequency and minimal adjustment needs over time.
| Feature | Grade 1 (Heavy Duty) | Grade 2 (Medium Duty) | Grade 3 (Light Duty) |
| Cycle Life | 2,000,000+ | 1,000,000 | 500,000 |
| Typical Traffic | Extreme (Hospitals/Schools) | Moderate (Offices) | Low (Residential) |
| Durability | Highest (Cast Iron/Heavy Alum) | Standard Aluminum | Light Duty Alloys |
| Adjustability | Full (Sweep, Latch, BC, DA) | Basic (Sweep, Latch) | Minimum |
2. Types of Commercial Door Closers: Choosing the Right Profile
Not every building requires the same aesthetic or mechanical footprint. Choosing the right “type” depends on the door material (glass, wood, or metal) and the desired level of concealment.
A. Surface-Mounted Closers
This is the most common variety. The closer body is visible and mounted to the face of the door or the frame. Within this category, there are four primary mounting styles:
- Regular Arm (Pull Side): The most power-efficient mount. The closer is on the pull side; the arm sticks out perpendicular to the door.
- Parallel Arm (Push Side): The “commercial favorite.” The arm sits parallel to the door when closed, making it more vandal-resistant and aesthetically cleaner.
- Top Jamb (Push Side): Used primarily on aluminum storefront doors. The closer body sits on the frame header, and the arm attaches to the door.
- Track Arm: Instead of a folding arm, a roller slides within a metal track. It is the sleekest surface-mounted option.
B. Concealed (Hidden) Closers
For high-end offices or luxury hotels, architects prefer Concealed Closers.
- The Benefit: The mechanism is mortised into the top of the door or the frame header. When the door is closed, the hardware is completely invisible.
- The Trade-off: Harder to install and maintain than surface-mounted units.
C. Floor Springs (Pivots)
Commonly seen in shopping malls and glass-fronted lobbies.
- Application: These are heavy-duty units buried in the floor. They are the only viable option for heavy all-glass doors that lack a frame to mount a standard closer.
D. Automatic Operators (The “Smart” Move)
These are motorized closers that open and close the door via a push-button or motion sensor. They are the gold standard for high-end ADA accessibility and “smart building” integration.
3. Anatomy and Adjustments (The Technical Core)
The Power Size (Spring Force): Understanding Sizes 1–6
The “Size” of a door closer refers to its closing torque—the amount of force it uses to pull the door shut.
- Fixed Size vs. Adjustable: Most modern commercial closers are “Universal” or “Adjustable” (Sizes 1-6).
- Size 1-2: Very light tension. Used to meet ADA 5-lb opening force requirements for interior doors.
- Size 3-4: The standard for most commercial interior doors.
- Size 5-6: Extreme tension for heavy exterior doors or areas with high wind “stack pressure” that would otherwise blow a door open.
The 3 Main Valves:
A commercial door closer is essentially a hydraulic piston engine working in reverse. As someone opens the door, they compress a high-tension spring and move hydraulic fluid through a series of internal chambers. The way this fluid returns determines how the door closes.
To achieve professional-grade performance, you must understand the three primary adjustment valves (and one optional feature) found on most high-quality Grade 1 and Grade 2 units.
A. Sweep Speed Or Closing Speed (The Main Closing Range)
The Sweep Speed (or Closing Speed) controls the door’s movement from the fully open position (typically 180° or 90°) down to about 10° to 15° from the frame.
- The Goal: You want a controlled, steady movement that doesn’t threaten to hit pedestrians but also doesn’t leave the door open too long, which would compromise HVAC efficiency.
- Adjustment Tip: On the closer body, this is usually marked with an “S” or a “1”. Turning the valve clockwise slows the sweep, while counter-clockwise speeds it up.
B. Latch Speed (The Final Engagement)
The Latch Speed governs the final 10° to 15° of the closing cycle. This is the most critical setting for security.
- The Goal: The door must have just enough momentum to overcome the friction of the latch bolt and the resistance of any weather stripping/gaskets to ensure the door is fully locked.
- The Danger: If the latch speed is too fast, the door will slam, causing structural damage to the frame and hinges over time. If it’s too slow, the door may “bounce” off the latch, leaving the building unsecured.
- Adjustment Tip: Marked with an “L” or a “2”.
C. Backcheck (The Opening Cushion)
Often misunderstood, Backcheck does not affect the closing of the door; it affects the opening. It provides resistance when the door is thrown open with force (due to wind or a person pushing too hard).
- The Goal: It prevents the door from slamming into an adjacent wall or over-extending the hinges, which can rip the closer right off the door.
- Application: Essential for any exterior door or doors in windy corridors.
- Adjustment Tip: Marked with a “BC”. It should start to kick in at about 65° to 75° of the opening arc.
D. Delayed Action (The Accessibility Luxury)
Delayed Action (DA) is an optional feature found on premium closers. It holds the door open at the top of the arc for a set period (usually 1 or 2 minutes) before beginning the sweep cycle.
- The Goal: It is the gold standard for ADA compliance and convenience. It allows people in wheelchairs, elderly individuals, or staff pushing carts to pass through comfortably without the door immediately pushing against them.
- Adjustment Tip: Marked with a “DA”.
4. ADA Compliance and Fire Safety: Navigating Codes and Standards
Selecting a commercial door closer is not merely a mechanical decision; it is a matter of legal and civil liability. In the United States, the Americans with Disabilities Act (ADA) dictates strict rules regarding the force required to operate a door, while fire safety codes (such as NFPA 80) mandate that fire doors remain closed and latched at all times.
A. Opening Force and the ADA
One of the greatest challenges in architectural hardware is balancing firm closing power with easy opening access.
- The 5-lb Rule: For interior non-fire-rated doors, ADA standards stipulate that the force required to push or pull open the door must not exceed 5 pounds (2.25 kg).
- Spring Tension Adjustment: To comply with this, you must use a “Multi-Size” or “Adjustable” closer (typically Sizes 1 through 6). Setting the spring tension to Size 1 or 2 usually allows the door to meet the 5-lb threshold.
- Accessibility: A closer that is set too “heavy” creates a physical barrier for the elderly, children, or individuals with disabilities. This is where the Delayed Action (DA) feature, mentioned earlier, becomes a vital asset for legal compliance.
B. Fire-Rated Doors and Life Safety
Fire doors are designed to compartmentalize a building, preventing the spread of flames and toxic smoke.
- Mandatory Self-Closing: Every fire door must be equipped with a self-closing device that ensures the door returns to the closed position and the latch fully engages after every single use.
- UL Listing: Any door closer installed on a fire-rated door must carry the UL (Underwriters Laboratories) or cUL stamp. Installing a non-certified closer will result in an immediate failure during a Fire Marshal inspection.
- Prohibition of Manual Hold-Opens: It is strictly illegal to use a mechanical “Hold-Open Arm” (a friction-style arm that clicks into place) on a fire door. If a fire door needs to stay open for convenience, it must use an electromagnetic hold-open device wired directly into the building’s fire alarm system.
C. International Standards: The EN 1154 (European Market)
If your project is located in Europe or follows international standards, the reference is EN 1154.
- Classification: This standard classifies closers from Power Size 1 to 7 based on the door width and mass they can handle.
- CE Marking: For fire-rated doors in the EU, the closer must be CE marked, proving it has passed rigorous fire-testing and durability cycles (typically 500,000 cycles for the European market).
5. Installation Best Practices: Precision Over Guesswork
An incorrectly installed closer will fail within months, regardless of its quality. Follow these three pillars of professional installation:
A. The Site Survey
Before drilling, you must measure:
- Door Width & Weight: A 4-foot wide steel door requires significantly more power than a 3-foot wood door.
- Clearance: Check for overhead obstructions or narrow frames that might prevent a Top Jamb or Parallel Arm mount.
B. The “Template” Method
Every professional closer includes a paper template. Precision to the millimeter is vital. If the distance between the hinge and the closer body is off by even 1/4 inch, the arm geometry changes. This puts undue stress on the seals, leading to the dreaded oil leak and total hydraulic failure.
C. Common Installation Mistakes to Avoid
- Incorrect Arm Tension: Pre-loading the arm incorrectly during a Parallel Arm install can result in a door that refuses to latch.
- Loose Mounting Screws: High-traffic doors vibrate. Without the use of “sex bolts” (through-bolts) on hollow metal doors, the closer will eventually rip out of the door face.
- Ignoring the “Backcheck” Valve: On exterior doors, failing to set the Backcheck allows the wind to catch the door like a sail, potentially snapping the arm or damaging the building’s exterior.
6. Troubleshooting & Maintenance: Keeping the Control
Even the most robust Grade 1 closer requires occasional oversight. In a commercial setting, hardware failure can lead to security breaches or energy loss. Here is how to identify and fix common issues:
Common Issues & Solutions
- The Door Slams Shut: This is usually a sign that the Latch Speed valve is too open or the hydraulic fluid has lost its viscosity. Solution: Turn the “L” valve clockwise in small increments.
- The Door Doesn’t Close Completely: Often caused by air pressure (stack effect) or a latch bolt that is too stiff. Solution: Increase the Latch Speed or check if the Power Size spring needs more tension.
- Oil Leaking from the Body: If you see oil dripping from the adjustment valves or the main pinion, the internal seals have failed. Solution: Replace the unit immediately. Hydraulic closers are sealed units and cannot be refilled safely in the field.
- Grinding Noises: This typically indicates a mechanical failure in the arm assembly or a lack of lubrication on the joints.
Our Advice: Investing in Reliable Door Control
Selecting the right commercial door closer is a balancing act between durability, legal compliance, and user comfort. While it may be tempting to opt for a budget-friendly residential model, the demands of a commercial environment—ranging from high foot traffic to strict fire codes—require professional-grade hardware.
By prioritizing Grade 1 certification, ensuring ADA compliance, and performing routine hydraulic adjustments, you protect not only your doors and frames but also the safety and accessibility of everyone who enters your building.
Next Steps for Your Facility
Are you upgrading your building’s hardware or troubleshooting a problematic entry point?
- Consult our Brand Reviews: Discover which manufacturers lead the industry in reliability.
- Download our Installation Checklists: Ensure your maintenance team sets up your hardware for a 2-million-cycle lifespan.
- Stay Compliant: Check our latest updates on local building codes and ADA requirements.
Don’t let a faulty door closer become a liability. Explore our deep-dive reviews and technical guides to find the perfect door control solution today.
Frequently Asked Questions (FAQ) About Commercial Door Closer
The primary difference is durability and cycle life. A Grade 1 closer is tested for 2,000,000 cycles and is designed for high-traffic public buildings (schools, hospitals). A Grade 2 closer is tested for 1,000,000 cycles and is suitable for medium-traffic areas like interior office doors.
Oil leakage usually indicates that the internal seals have failed, often due to age, extreme weather, or improper installation (incorrect arm geometry). Since door closers are sealed hydraulic units, they cannot be repaired. A leaking closer must be replaced immediately to avoid losing control of the door’s closing speed.
No. You must use a closer that is UL Listed and fire-rated. Furthermore, you cannot use a “Hold-Open” arm on a fire door, as fire codes require these doors to be self-closing and self-latching at all times to prevent the spread of smoke and flames.
To stop a door from slamming, locate the “L” (Latch Speed) valve on the closer body. Using a screwdriver or hex key, turn the valve clockwise in small 1/8-turn increments. This increases the hydraulic resistance during the final 10–15 degrees of closing.
The Backcheck (BC) valve provides resistance when the door is opened with excessive force (e.g., by a strong gust of wind). It prevents the door from swinging open too fast and damaging the wall, the frame, or the closer arm itself.
